DOK2-CORALL COMBINED SPECTRA
D_C_SPEC OBJECT
Combined DOK2-CORALL 2-min averaged spectra for defined detector pairs are drawn.
Contact, please, Dr. Karel
Kudela (kkudela@kosice.upjs.sk)
or Dr. Volt Lutsenko (vlutsenk@volt.iki.rssi.ru),
if you are going to use DOK2 data.
Available object is:
-
D_C_SPEC - Object is called with 2 arguments, defining DOK2 ion detector (1st argument) and CORALL angular channel (2nd argument).
Correspondence of Detector (Channel) Number with Detector (Channel) Looking Angle (degrees) is the following:
DOK2: 2 - 180; 3 - 62
CORALL: 0 - 42, 1 - 66, 2 - 90, 3 - 114, 4 - 138
Default value for DOK2-CORALL intercalibration factor is 4.5e4. Default value for CORALL background
is 5 counts per sample. These values could be changed by using resource file "d_c_spec.res"
(see Example).
NOTE:
Xrange in keV and Yrange in 1/(cm^2 s keV strad) should be defined for this object.
Example
Request file:
001
d_c_spec .05 .05 .8 .8 1. 800 .01 10000000 2,4
1995:285:22:00:00
000:00:10:00
Resource file ("d_c_spec.res"):
4.5e4 5.

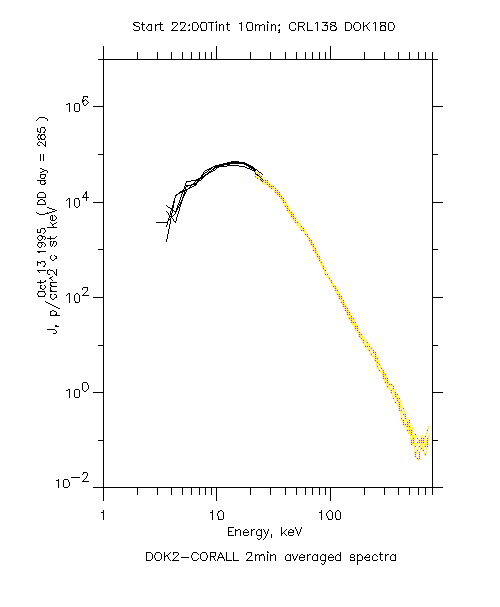

Output:
