DOK2 SPECTROGRAMS and TIME PROFILES

DOKS and DOKT OBJECTS

DOK2 is solid state spectrometer measuring ions in the energy range 20 keV - 750 keV and electrons in the energy range 30 keV - 400 keV. DOK2 includes two detectors - one looks tailward, the other one looks most of the time at 62 deg to spin axis of satellite. Contact, please, Dr. Karel Kudela (kkudela@kosice.upjs.sk) or Dr. Volt Lutsenko (vlutsenk@volt.iki.rssi.ru), if you are going to use DOK2 data.

Available objects are:

DOKS - color coded Energy versus Time spectrogram of DOK2 fluxes. Spectra are measured in adaptive mode - i.e. sampling time depends on flux intensity. Object is called with one parameter:

DOKSCALE - Color Scale for DOKS object.
DOKT - Time profiles for ion and electron fluxes (1/cm^2/s/strad/keV) measured by DOK2. Object is called with one parameter:

Note:
Yrange should be defined for DOKT objects.

Color scale for DOKS object is controlled by 'dokscom.res' file :


10. 50000.  ;  Minimum and Maximum Flux Values (1./cm^2/s/strad/keV)

Example

Request file:


003
DOKT      0.05 0.5  0.95  0.7  0.0 0.0 500.0 20000.0 0
DOKS      0.05 0.7  0.95  0.9  0.0 0.0 0.0 0.0 0
DOKSCALE  0.96 0.7  0.99 0.9  0.0 0.0 0.0 0.0
1995:285:21:30:00
000:01:00:00

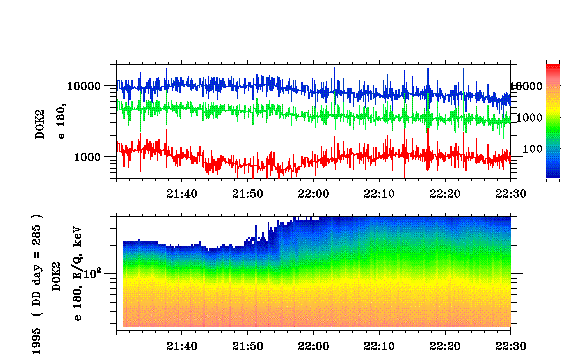

Output :
