ELECTRON SPECTROGRAM
ELECSP OBJECTS
ELECTRON is a top hat electron spectrometer. Energy range 10 eV - 26 keV.
8 angular channels, 22.5deg x 6deg each. Contact, please, Dr. Jean-Andre
Sauvaud (Jean-Andre.Sauvaud@cesr.fr )
or Dr. Natalia Borodkova (nbor@afed.iki.rssi.ru ),
if you are going to use ELECTRON data.
-
ELECSP - color coded Energy versus Time spectrogram
of ELECTRON.
Countrate of
the detector per second is encoded by
color. Color coding can be displayed
by ELECSCALE object.
The object shows just raw data.
The object does not need any settings in
XRange and YRange fields.
It is called with parameter defining detector (0 - 7).
Detector 0 is the most sunward looking detector,
detector 7 - tailward.
-
ELECSCALE - Color Scale for countrate
for ELECSP object. This object
does not need Xrange and Yrange.
Number of spectra per graph and color scale
are controlled by "elecspcom.res" file :
500 ; The number of spectra per graph
10 10000 ; Min and Max count levels (counts/sec)
Example
Request file:
004
ELECSP 0.05 0.1 0.9 0.3 0.0 0.0 0.0 0.0 0
ELECSP 0.05 0.3 0.9 0.5 0.0 0.0 0.0 0.0 3
ELECSP 0.05 0.5 0.9 0.7 0.0 0.0 0.0 0.0 7
ELECSCALE 0.92 0.35 .97 0.47 0.0 0.0 0.0 0.0
1996:295:22:00:00
000:01:00:00

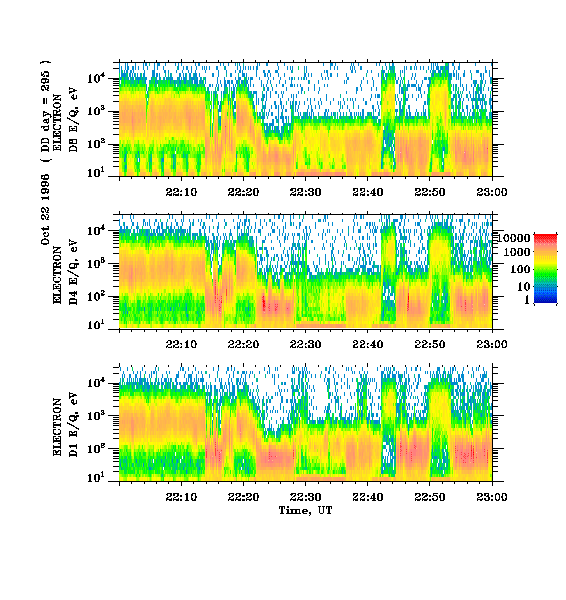

Output:
