MAGION-4 ION and ELECTRON SPECTROGRAM
MPS OBJECTS
MPS is the assemble of two plasma instruments onboard MAGION-4
satellite (subsatellite of INTERBALL/TAIL).
First instrument - SPS - is the hemispherical analyzer of ions
( three channels: 45o, 90o, 135o ) and
electrons (two channels: 45o, 135o).
Second instrument - MPS - consists of two narrow aperture analyzers
directed sunward and antisunward( 0o, 180o).
Available objects are:
-
MPS + arguments
-
e45 - color coded Energy versus Time spectrogram
of sum of counts for both SPS electron channels
( e45 + e135 )
-
i45 - color coded Energy versus Time spectrogram
of sum of counts for all SPS ion channels
( i45 + i90 + i135 )
-
i0 - color coded Energy versus Time spectrogram
of counts for MPS ion channel, directed sunward
( i0 )
-
i180 - color coded Energy versus Time spectrogram
of counts for MPS ion channel, directed antisunward
( i180 )

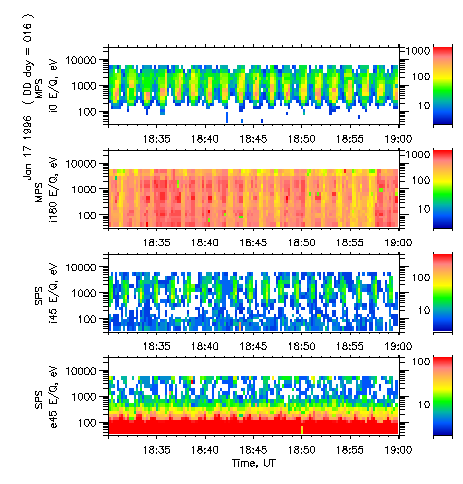

Example
request file:
008
mps 0.05 0.05 0.9 0.2 0.0 0.0 0.0 0.0 'e45'
mps 0.05 0.5 0.9 0.65 0.0 0.0 0.0 0.0 'i0'
mps 0.05 0.2 0.9 0.35 0.0 0.0 0.0 0.0 'i45'
mps 0.05 0.35 0.9 0.5 0.0 0.0 0.0 0.0 'i180'
mpsscale 0.92 0.35 0.97 0.5 0.0 0.0 0.0 0.0 'i180'
mpsscale 0.92 0.5 0.97 0.65 0.0 0.0 0.0 0.0 'i0'
mpsscale 0.92 0.2 0.97 0.35 0.0 0.0 0.0 0.0 'i45'
mpsscale 0.92 0.05 0.97 0.2 0.0 0.0 0.0 0.0 'e45'
1996:016:18:30:00
000:00:30:00
The averaging of spectra while plotting and color scale
are controlled by "mpscom.res" file in current workin directory:
500 Inum ; The number of spectra per graph + comment
1.0 100.0 SPSe ; SPSe color coef.
1.0 1000.0 SPSi ; SPSi color coef.
1.0 500.0 MPSi ; MPSi color coef.
Output:
