GEOTAIL & INTERBALL (TAIL). October 1995

The monthly orbital analysis in order to select correlations for joint investigations.

Click icons to make large pictures.

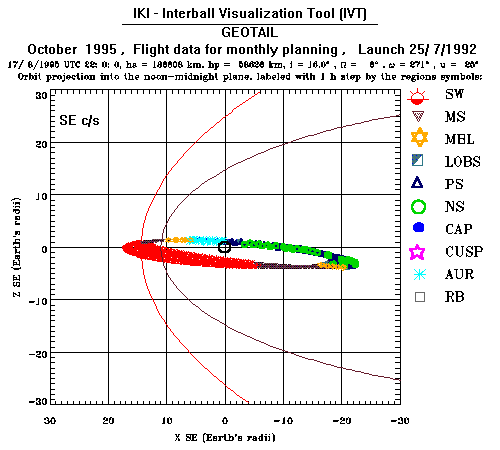

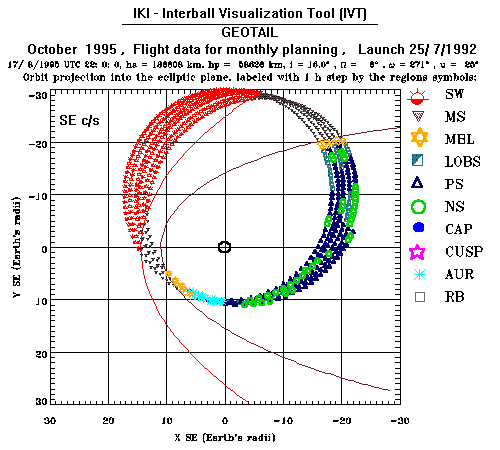

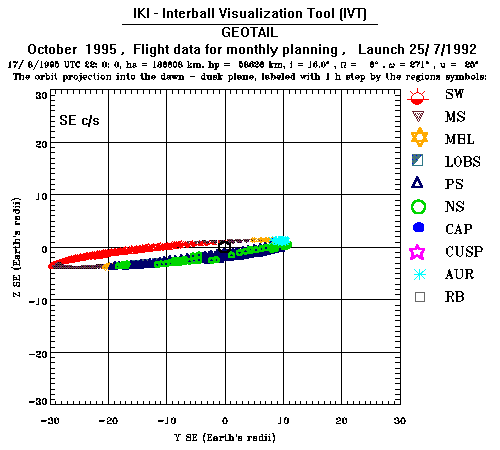

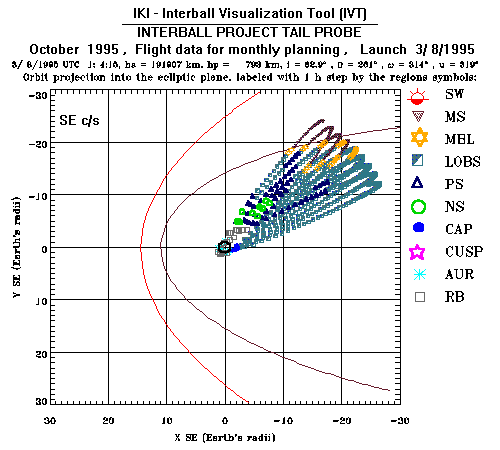

The Geotail and the Interball (Tail) orbits in the Solar ecliptic coordinate system.

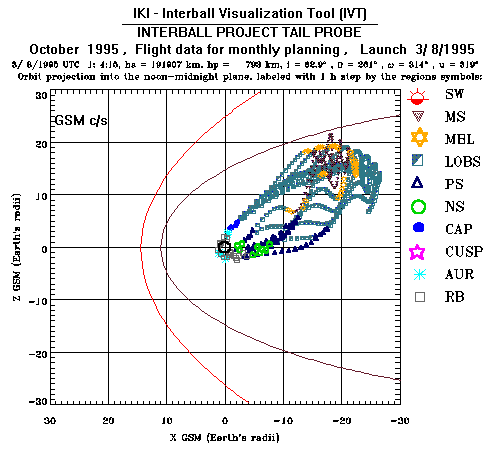

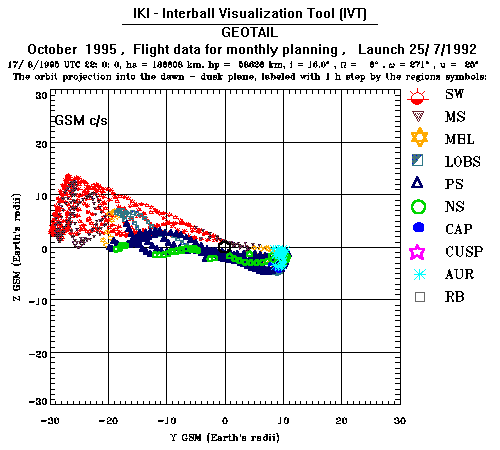

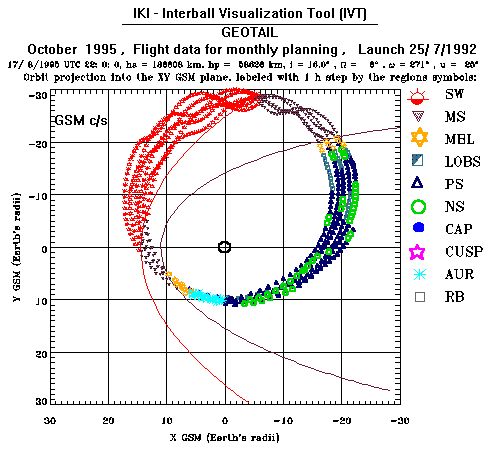

The Geotail and the Interball (Tail) orbits in the Solar magnetospheric coordinate system.

The operation time table for the IACG/ISTP Tail Campaign 1 in October 1995

Click the time number in the table for the orbital configuration visualization.

Time # DOY  MON  UTYYMMDD HHMM - UTYYMMDD HHMM
     1 293  OCT. 19951020.0530   19951020.1800
     2 294  OCT. 19951021.1415   19951021.2200
     3 299  OCT. 19951026.0950   19951026.2120
     4 300  OCT. 19951027.1415   19951027.2200
     5 304  OCT. 19951031.0800   19951031.1930

The reference to the regions designations.

The reference to the model magnetospheric regions and boundaries .
