GEOTAIL & INTERBALL (TAIL). December 1995

The monthly orbital analysis in order to select correlations for joint investigations.

Click icons to make large pictures.

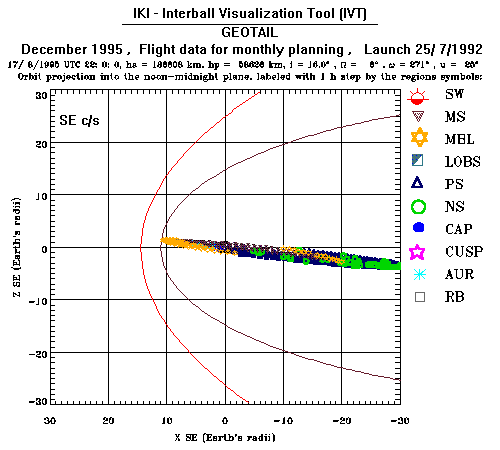

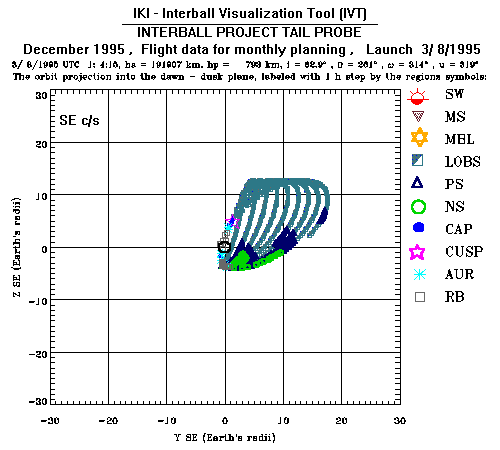

The Geotail and the Interball (Tail) orbits in the Solar ecliptic coordinate system.

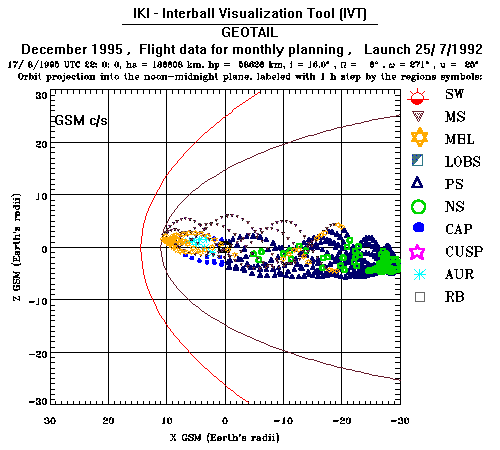

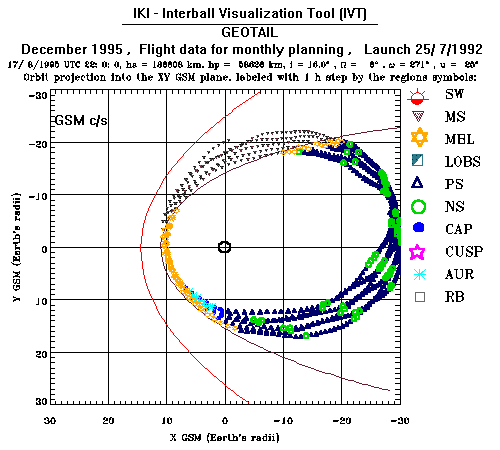

The Geotail and the Interball (Tail) orbits in the Solar magnetospheric coordinate system.

The operation time table for the IACG/ISTP Tail Campaign 1 in December 1995

Time # DOY  MON  UTYYMMDD HHMM - UTYYMMDD HHMM
    14 337  DEC. 19951203.0900   19951203.2020
    15 338  DEC. 19951204.1415   19951204.2200
    16 341  DEC. 19951206.2300   19951207.1050
    17 342  DEC. 19951208.0745   19951208.1900
    18 343  DEC. 19951209.1330   19951209.2020
    19 349  DEC. 19951215.1415   19951215.2200
    20 350  DEC. 19951216.1415   19951216.2200
    21 352  DEC. 19951218.0135   19951218.1415
    22 353  DEC. 19951219.0830   19951219.1910
    23 354  DEC. 19951220.0940   19951220.2110
    24 355  DEC. 19951221.1415   19951221.2200

The reference to the regions designations.

The reference to the model magnetospheric regions and boundaries .
